New 7X 45X Magnification Table Pillar Stand Trinocular Stereo Zoom Microscope SZM2.0X SZM0.5X Lens for CPU BGA PCB phone repair

New 7X 45X Magnification Table Pillar Stand Trinocular Stereo Zoom Microscope SZM2.0X SZM0.5X Lens for CPU BGA PCB phone repair
  • Продавецironandwinetickets.org
  • Список ценUS $263.34piece
  • Продажная ценаUS $263.34piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,8 (181)

Oписание продукта

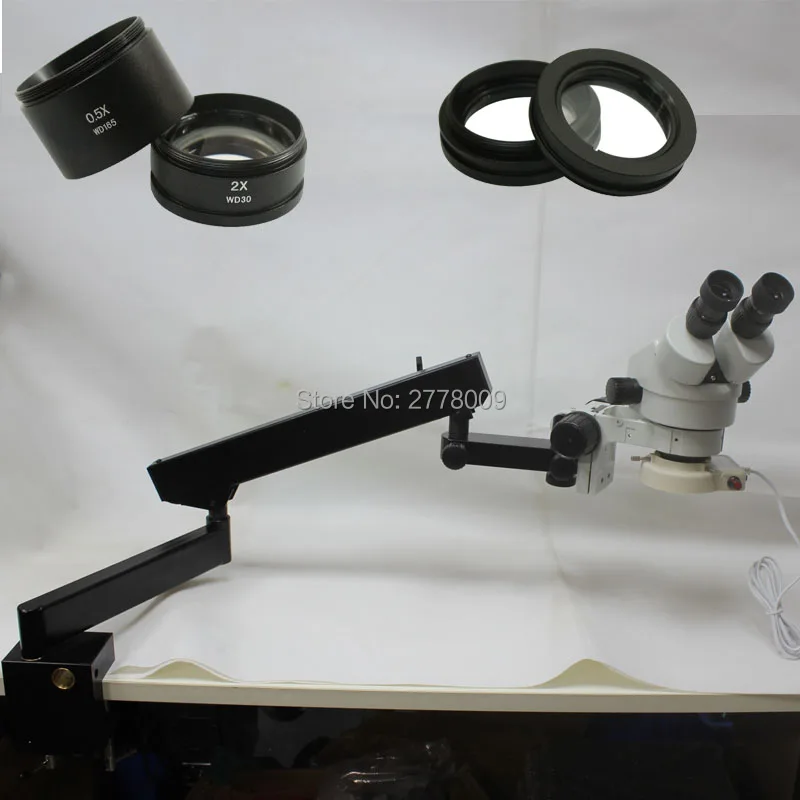

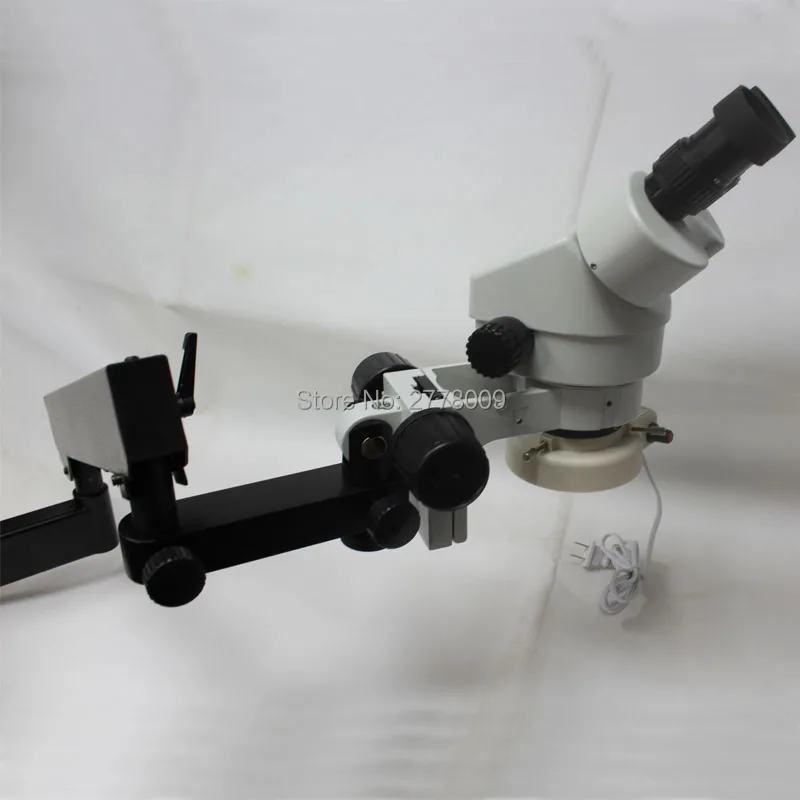

This stand has a Three Arms system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.

11121045B1 (1)45B1 (2)0.5-2X140

Key Features:
7X-45X zoom magnification, with clear and sharp images
Ultra-wide-angle high-point optics
Wide field of view
4 "(100mm) working distance
Rugged all-metal post
Powerful 144-LED ring light with dimmer
This stereomicroscope has a 144-LED ring lamp that provides ultra-wide-angle optics and a 7X-45X zoom magnification with cold light illumination system. It is ideal for industrial testing and / or biological laboratory applications. This microscope is perfect for gemologists, manufacturing engineers, dental laboratory technicians and anyone in the electronics and semiconductor industries.In this case,An excellent three-dimensional inspection microscope with adjustable intensity144-LED ring light
7x-45x super wide zoom magnification
Bright cold light 144-LED lighting system
High resolution with large flatness and contrast, giving crisp and clear images

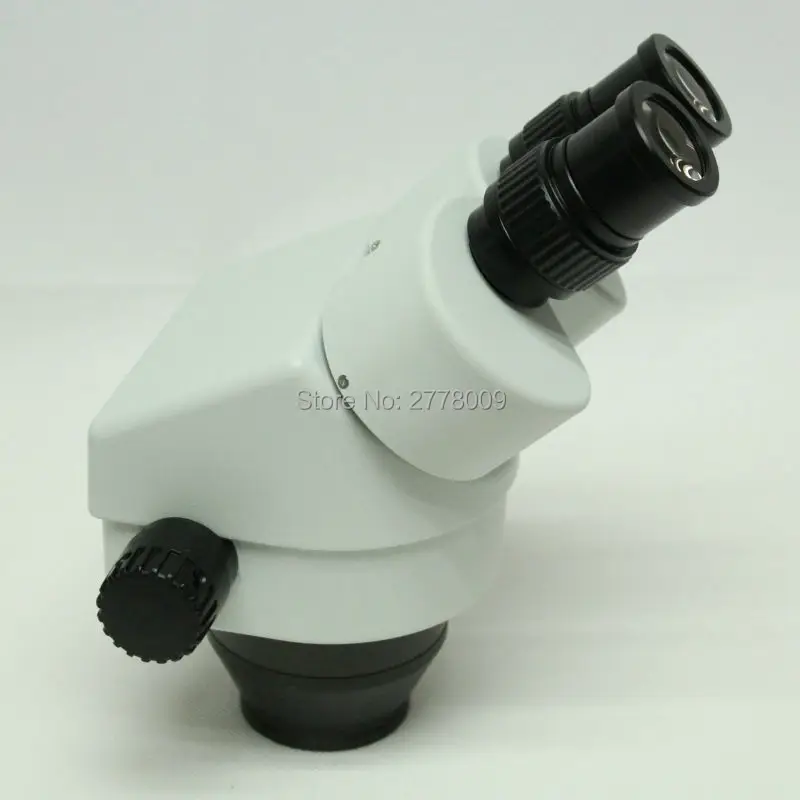

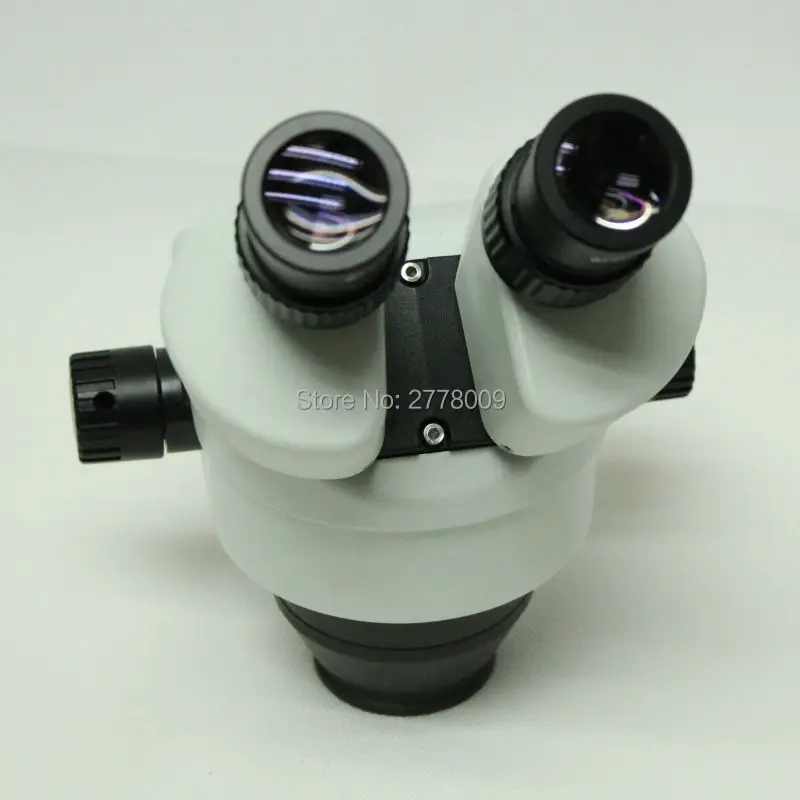

Binocular head with a 45 degree tilt 360 degree rotation of the eye
The sharp three-dimensional image has a wide field of view
Crystal clear primary color true color microscope image
A binocular tube with adjustable refraction
Large working distance
Rugged all-metal table stand
Precise alignment reduces eyestrain and can be observed for longer periods
All - optical glass components
Fine frosted glass lens
All-metal chrome-plated mechanical parts
Adjustable pupil distance
Including rubber eye protection
In this case,
Specification:
In this case,
Head: 360 degrees can rotate 45 degrees tilt binocular
Eyepiece: 30mm ultra wide angle high eye point WF10X / 20MM
Objective lens zoom range: 0.35X-9.0X, the use of Barlow lens
Working distance: 4 "(100mm)
Diopter adjustment: +/- 5dp
Interpupillary distance: 2-3 / 16 "-2-15 / 16" (55-75mm)
Round plate: 3-3 / 4 "(95mm)
Booth: 10 "x 7-7 / 8" x 10.75 "(254 x 200 x 275mm)
Lighting: 144-LED ring light
Power input: 110-240V, 50-60HZ, automatic switching
Accessories: matching goggles
12100.5-2X

0.5X and 2X auxiliary objective lens:

Uses: Zoom in or enlarge the stereomicroscope magnification. Applicable to all stereoscopic microscopes (binoculars, three heads) for narrowing or enlarging the viewing magnification, increasing or reducing the field of view.

Working distance: 0.5X field of view 165mm, 2X field of view is 30mm.
02019
Dust-proof mirror Use: In the process of repairing the motherboard, the use of high-temperature air guns will be attached to the smoke on the mirror, so that your microscope becomes more blurred. Install the dust mirror, you can keep the mirror clarity, you can also remove the cleaning.
22
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V AC, 50-60HZ
Suit for the dia of the lens: 30mm-60mm

Packing list:
1 x Binocular Stereo Zoom Head
1 x Pair of Super Widefield High-Eyepoint 10X Eyepieces
1 x Articulating Arm with a Clamp
1 x Dust mirror
1 x 144-LED Ring Light with adaptor
1 x  Focusing Rack
1 x Pair of Eye-Guards
1 x Adapter
Auxiliary objective lens according to the order ordered by the buyer
1 x 2X auxiliary objective
1 x 0.7X auxiliary objective
1 x 0.5X auxiliary objective
