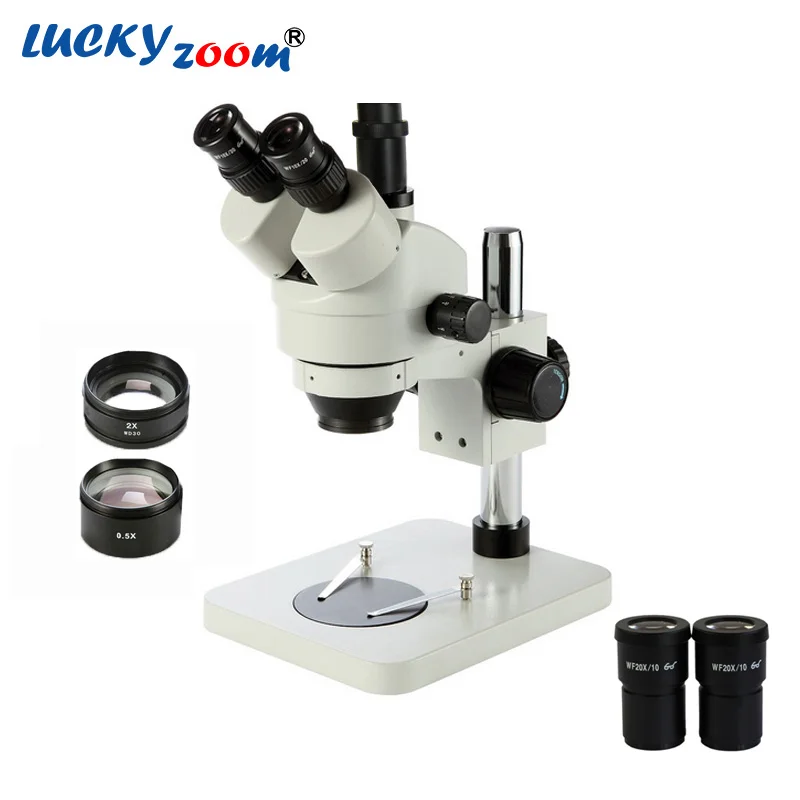

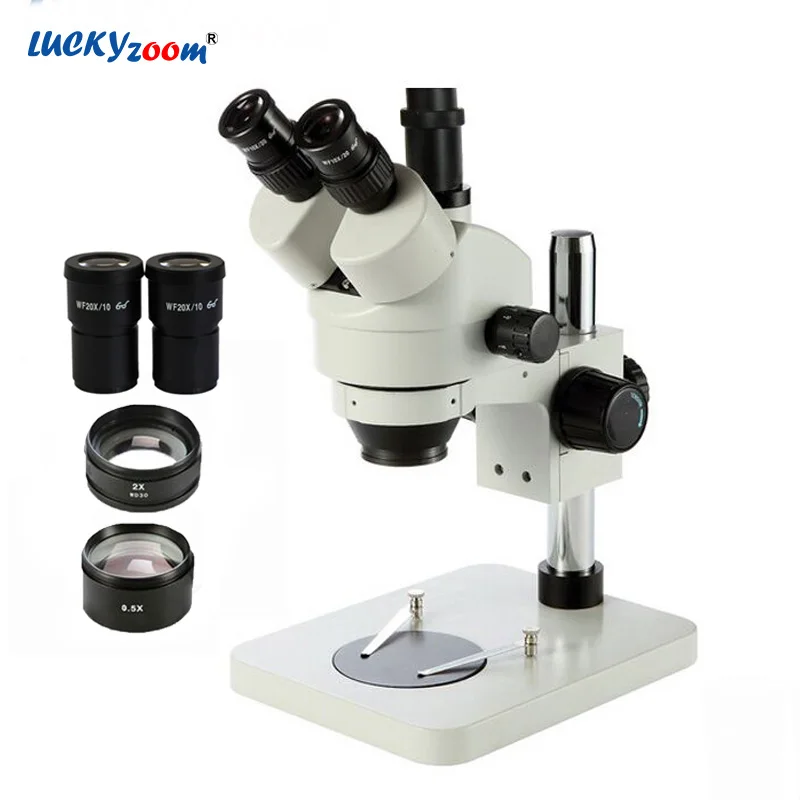

Luckyzoom 3.5X 180X Magnification Table Pillar Stand Trinocular Stereo Zoom Microscope SZM2.0X SZM0.5X Lens Free Shipping

Luckyzoom 3.5X 180X Magnification Table Pillar Stand Trinocular Stereo Zoom Microscope SZM2.0X SZM0.5X Lens Free Shipping
  • Продавецironandwinetickets.org
  • Список ценUS $294.33piece
  • Продажная ценаUS $294.33piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,5 (439)

Oписание продукта

Luckyzoom 3.5X-180X Magnification Table Pillar Stand Trinocular Stereo Zoom Microscope SZM2.0X SZM0.5X Lens Free Shipping



QQ20180809120704



 Important Note Before Buying:

1. Dear customers, thanks for visiting our store, we will choose DHL or TNT or UPS Or Fedex to ship the product according to your country and area even though you choose any of them, they are all free shipping when you place the order. Hope for your kind understanding.

2. For security purpose, we may need to pack some of the models into 2 packages, one is microscope head and another one is microscope stand. If you have any question, please contact us online before buying our microscopes.

3. When the product reaches your local custom, they may ask for custom tax, it is the receiver\'s responsibility to pay for the import custom tax, it is not claimed in time, the return fee will be paid by the receiver, thanks for your understanding.

4. Before Shipping, our professional and experienced warehouse colleagues will check test and pack it well. Don\'t worry.

Product application range:

Widely used in microelectronics, molds, precision machinery, jewelry, watches, jewelry, fingerprint identification, ticket identification, printing, mobile phone repair, archaeology, biological anatomy, school teaching and other fields.

Especially suitable for observing the surface microstructure of large objects.

Trinocular design, you can add a microscope camera later, and observe it on a computer or display through a microscope camera.

Note: This is not a simu-focal head microscope, if you need simul-focal head, please visit this link:

https://www.aliexpress.com/store/product/Lucky-Zoom-3-5X-180X-Simul-Focal-Trinocular-Stereo-Microscope-WF20X-Eyepiece-Microscope-For-Soldering-2/300856_32956875343.html

What is simul-focal head? Simul-focal head allows you to view the image via the camera and the microscope eyepiece at the same time. If you don\'t like to connect the camera with a microscope camera, you don\'t need it. If you plan to use a microscope camera in the future, you can try simul-focal head. If you still have doubts, you can contact us online.



Features:

  • 3.5X-180X super wide zoom magnification power
  • High resolution with great flatness and contrast, giving sharp and clear images
  • Trinocular head with 45 degree inclined 360 degree swiveling eye tubes
  • 30mm super widefield high-eyepoint eyepieces with a 20mm field of view
  • Sharp stereo erect images with a wide field of view
  • Dual eye tubes with adjustable diopters
  • Contemporary table stand
  • Accurate alignment reduces eye strain for longer periods of viewing
  • full optical glass elements
  • precise ground glass lenses
  • Rubber eye-guards included


QQ20180518152449

1-Pair-of-Luckyzoom-Brand-Professional-Extreme-Widefield-20X-Eyepieces-10mm-High-Quality-Microscope-Accessories.jpg_640x640

Specifications:

  • Head: 360 degree rotatable 45 degree inclined trinocular

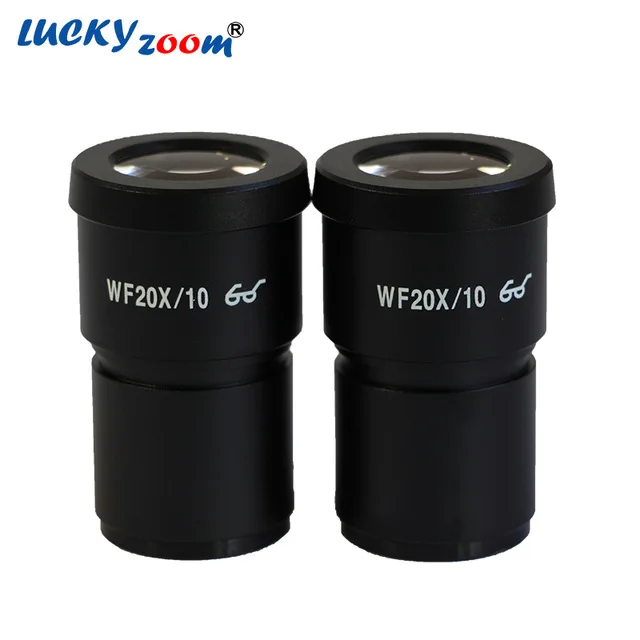

  • Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM &WF20X/12MM

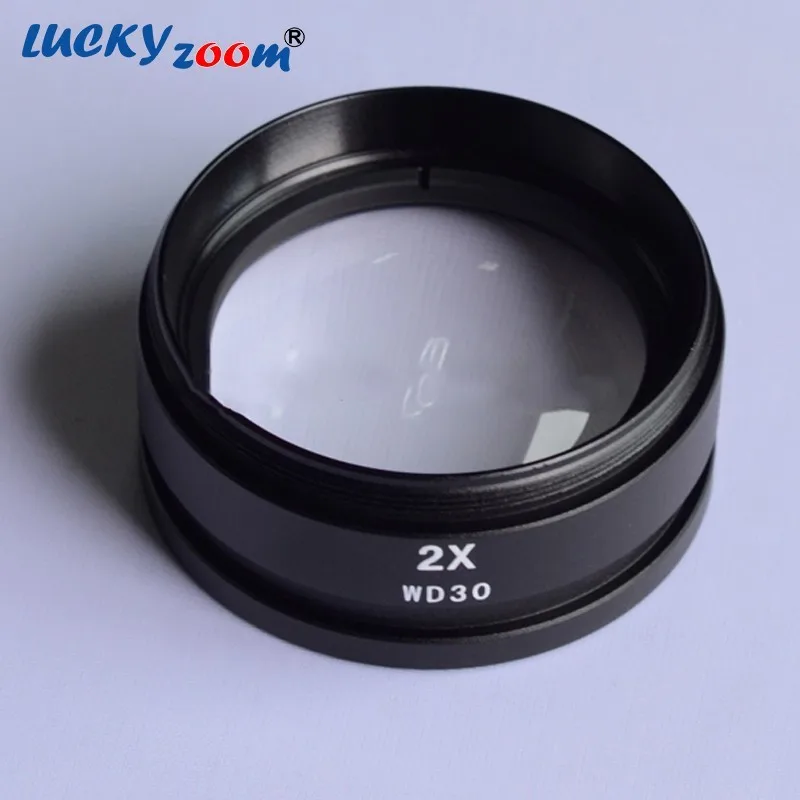

  • Auxiliary objective : SZM2.0X& SZM0.5X
  • Zoom Range: 0.35X-18.0X
  • Diopter Adjustment: +/- 5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
  • Working Distance: 4" (100mm)
  • Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
  • Round Plate: 3-3/4" (95mm) in diameter
  • Accessories: Paired eye-caps

aeProduct.getSubject()aeProduct.getSubject()

1

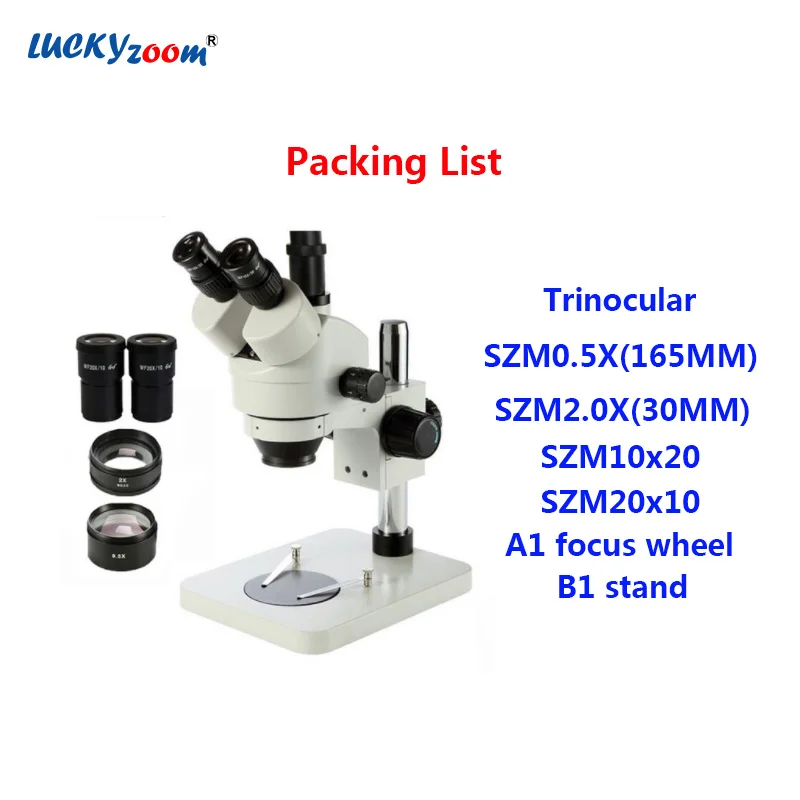

Packing List:

  • One Trinocular Stereo Zoom Head
  • One Pair of SUPER Widefield 10X Eyepieces
  • One Pair of SUPER Widefield 20X Eyepieces
  • One SZM2.0X auxiliary objective
  • One SZM0.5X auxiliary objective
  • One Pillar Table Stand
  • One Focusing Rack
  • One Round Plastic Plate
  • One Pair of Eye-Guards
  • One Pair of Clips
  • One Dust Cover



QQ20180809122629

Optical Data:



Eyepiece Standard layoutSZM0.5XSZM1.5XSZM2.0X
Work distance 100mmWork distance 165mmWork distance 45mmWork distance 30mm
MagnificationField videoMagnificationView fieldMagnificationView fieldMagnificationView field
WF10X/20mm7.0X28.6mm3.5X57.1mm10.5X19mm14X14.3mm
45X4.4mm22.5X8.9mm67.5X3mm90X2.2mm
WF15X/15mm10.5X21.1mm5.25X42.8mm15.75X14.3mm21X10.7mm
67.5X3.3mm33.75X6.7mm101.25X2.2mm135X1.7mm
WF20X/10mm14.0X14.3mm7.0X28.6mm21.0X9.5mm28X7.1mm
90.0X2.2mm45.0X4.4mm135.0X1.5mm180X1.1mm
